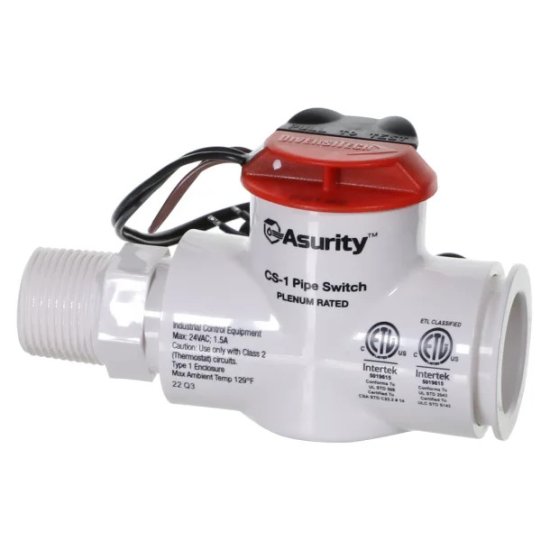

Condensate Safety Float Switch

The Asurity® CS-1 Pipe-Mounted Tee Switch is simple to install and service, and extremely reliable. Three installation configurations include pipe inline, on drain pan and 90 degrees. As water level in the drain pipe rises due to a clogged air conditioning condensate drain, the switch shuts off the system, preventing water from overflowing and causing damage to doors, walls and ceilings. The durable, precise magnetic reed switch will not rust, operating smoothly every time.

Specifications

Includes N/A

Product Type Inline

Application Condensate Drain Lines

UL Listed No

Alert Indicator Visual

Electrical Classification Class 2

Electrical Connection Type 2-Wire

Plenum Rated Yes

Rated Current (A) 1.5

Rated Voltage 24VAC

Switch Mode Normally closed (N/C)

Test Switch / Button Yes

Ducted or Ductless Ducted

Color Code N/A

Switch Type SPST
